Nylon Cable Gland PG Type

YUEQING LKS CABLE TIE CO.,LTD

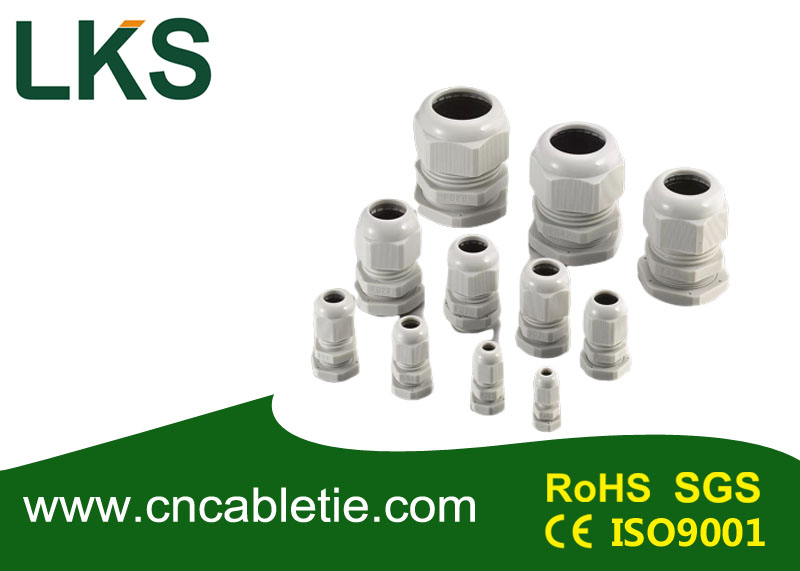

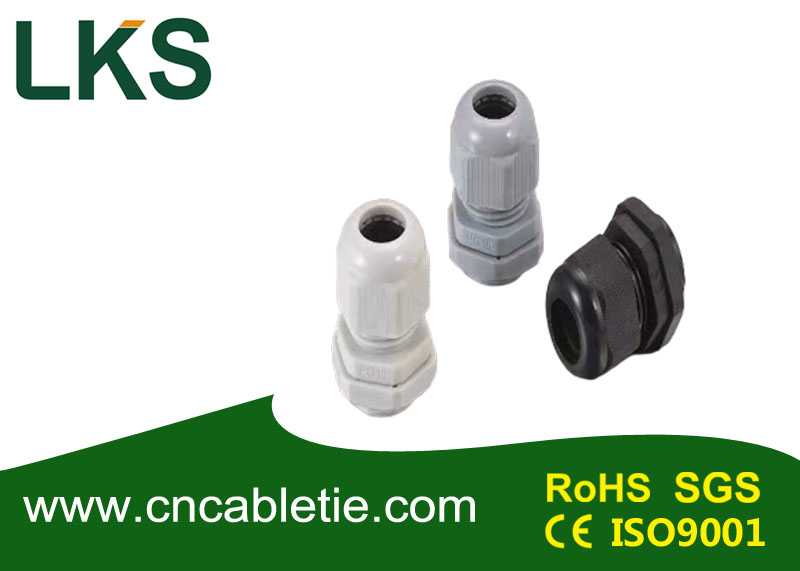

Nylon Cable Gland PG Type

  • 1
  • 2

Brand Name : LKS

Certification : RoHS,SGS,CE,ISO9001

Place of Origin : China

MOQ : 10000pcs

Payment Terms : L/C, T/T

Supply Ability : 100000pcs per day

Delivery Time : 5days

Packaging Details : polybag

Contact Now


Technical Information:

  • Model:PG type
  • Material:PA66/PP.
  • Size:PG7 to PG63.
  • Color: White/Grey/Black/Red or OEM Color.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:Static -40℃ to 100℃,dynamic-20℃ to 80℃, short time to 120℃.
  • Packing: 100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
  • Port: Shanghai/Ningbo.

Description:

  • Thread:PG.
  • Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber (NBR)or EPDM.
  • Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part).
  • Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃.
  • Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents.
  • Color:Light grey(RAL7035),black(RAL9005),other color can be customized according to request.

ModelCable Range(mm)Thread O.D AG()mmThread Length GL(mm)Spanner Size(mm)
PG73-6-52-512.5818/17
PG72512.5818/17
PG94月8日15.2822/19
PG92月6日15.2822/19
PG115月10日18.6924/22
PG113月7日18.6924/22
PG13.56月12日20.41027/24
PG13.55月9日20.41027/24
PG1610月14日22.51030/27
PG168月12日22.51030/27
PG1912月16日241030/27
PG1910月14日241030/27
PG2113-1828.31036/33
PG219月16日28.31036/33
PG2516-21301137/36
PG2513-18301137/36
PG2918-25371246/42
PG2913-20371246/42
PG3622-32471458/52
PG3620-26471458/52
PG4232-40541464/60
PG4225-31541464/60
PG4837-4459.314.570/64
PG4829-3559.314.570/64
PG6342-50712882/77
PG6332-40712882/77
