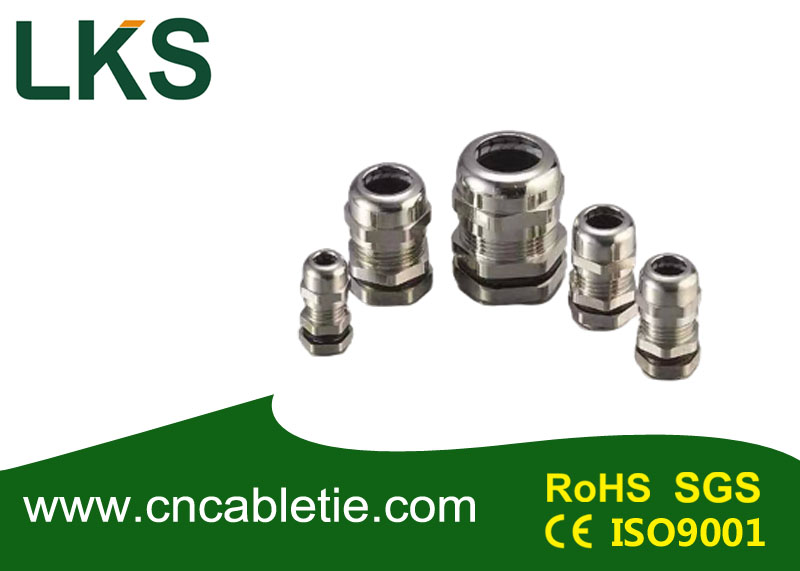

Brass Weaterproof Cable Gland PG Type (Short Claw Type)

YUEQING LKS CABLE TIE CO.,LTD

Brass Weaterproof Cable Gland PG Type (Short Claw Type)

Brand Name : LKS

Certification : RoHS,SGS,CE,ISO9001

Place of Origin : China

MOQ : 10000pcs

Payment Terms : L/C, T/T

Supply Ability : 100000pcs per day

Delivery Time : 5days

Packaging Details : polybag

Contact Now

Technical Information:

  • Model:PG type
  • Material:Brass coated by nickel.
  • Size:PG7 to PG63.
  • Color:Metallic Color.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:-40℃ to 100℃,short time to 120℃.
  • Packing:100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
  • Port: Shanghai/Ningbo.

Description:

  • Thread: PG
  • Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber (NBR)or EPDM.
  • Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part)
  • Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃
  • Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents.

ModelCable Range()Thread O.D AG()mmThread Length GL(mm)Spanner Size(mm)
PG73-6.512.5614
PG94月8日15.2717
PG115月10日18.67.520
PG13.56月12日20.47.522
PG1610月14日22.57.524
PG1910月15日24825
PG2113-1828.3830
PG2515-2030933
PG2918-2537940
PG3625-32471050
PG4232-38541157
PG4837-4459.31164
PG6342-52722078
