Brass Waterproof Cable Gland METRIC Type (Short Claw Type)

YUEQING LKS CABLE TIE CO.,LTD

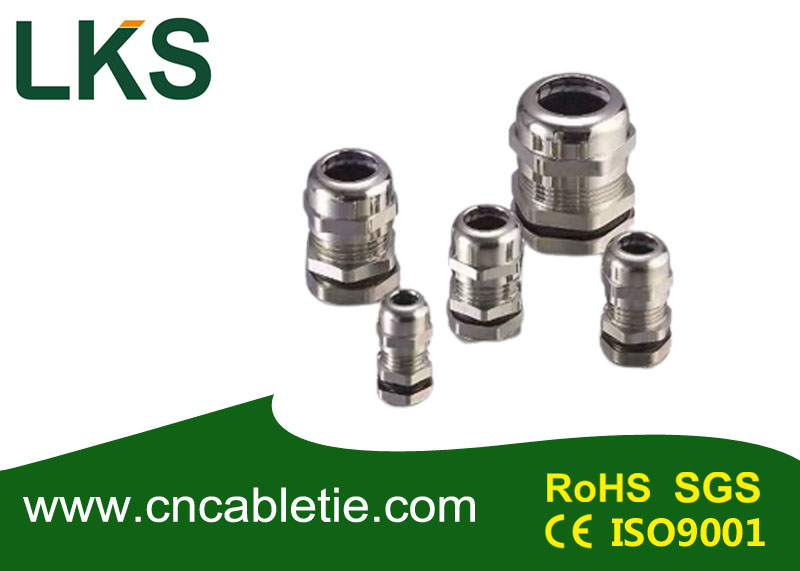

Brass Waterproof Cable Gland METRIC Type (Short Claw Type)

Brand Name : LKS

Certification : RoHS,SGS,CE,ISO9001

Place of Origin : China

MOQ : 10000pcs

Payment Terms : L/C, T/T

Supply Ability : 100000pcs per day

Packaging Details : polybag

Contact Now


Technical Information:

  • Model:M type (Short Claw Type)
  • Material:Brass coated by nickel.
  • Size:M10 to M63.
  • Color: Metallic Color.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:-40℃ to 100℃,short time to 120℃.
  • Packing:100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
  • Port: Shanghai/Ningbo.

Description:

  • Thread: Metric
  • Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber(NBR)or EPDM.
  • Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part)
  • Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃.
  • Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents.
  • Color:Light grey(RAL7035),black(RAL9005),other color can be customized according to request.

ModelCable Range(mm)Thread O.D AG()mmThread Length GL(mm)Spanner Size(mm)
M10X1.53-6.510815/15
M10x1.5l3-6.510815/15
M12x1.5S3-6.5128.517/15
M12X1.5SL3-6.5121517/15
M12X1.54-8128.517/19
M12X1.5L4-8121517/19
M16X1.5S4-8161022/19
M16X1.5SL4-8161522/19
M16X1.55-10161022/22
M16X1.5L5-10161522/22
M18X1.5S5-10181024/22
M18X1.5SL5-10181524/22
M18X1.56-12181024/24
M18X1.5SL6-12181524/24
M20X1.5S6-12201027/24
M20X1.5SL6-12201527/24
M20X1.59-14201127/27
M20X1.5L9-14201527/27
M22X1.59-14221130/27
M22X1.5L9-14221530/27
M24X1.59-14241130/27
M24X1.5L9-14241530/27
M25X1.5S9-14251133/27
M25X1.5SL9-14251533/27
M25X1.513-18251233/33
M25X1.5L13-18251533/33
M32X1.5S14-20321237/36
M32X1.518-25321237/42
M36X1.518-25361245/42
M40X1.523-32401550/52
M50X1.530-41501562/62
M63X1.535-45631875/68
